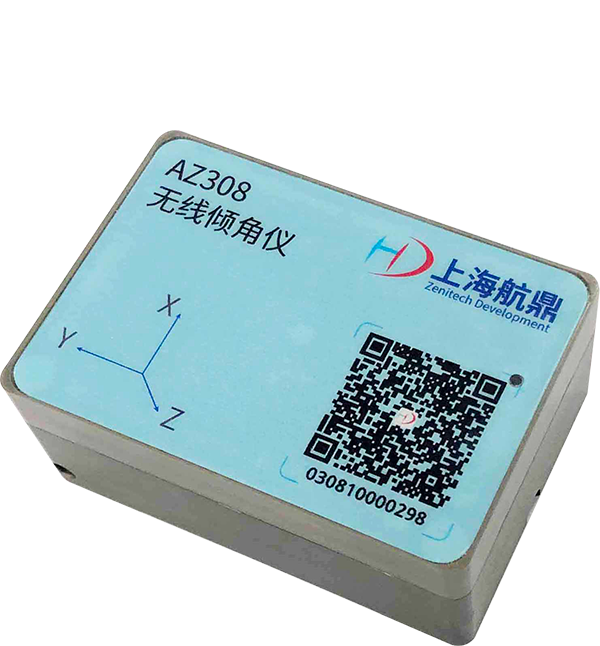

Wireless Inclinometer
Wireless Inclinometer
The wireless inclinometer is used for real-time monitoring of inclination, impact, cracks, dislocation and tensioning, and is suitable for historical buildings, cultural relics, walls, bridges, surrounding rocks, towers, dangerous buildings, etc.; All parameters are monitored in real time, and uploaded beyond the threshold: tilt accuracy of 0.005°, impact accuracy of 1mg, crack, dislocation and tension monitoring accuracy of 0.01mm.
Basic Features:
- Measurement, acquisition, transmission and power supply in one;
- Distributed collection, high reliability;
- Fully wireless, no cables, maintenance-free, recycling;
- Real-time monitoring, regular reporting, and immediate reporting of overruns;
- Easy installation and low comprehensive cost;
- Low energy consumption, more than 3 years life;
- Mobile alarm, low voltage alarm.
Product Features
| name | Basic functions | Installation | Common scenarios |
|---|---|---|---|
| Tilt monitoring | Real-time monitoring exceeds the threshold and the upload accuracy is 0.005º | The stent is fixed on the surface of the monitored building (structure), and the bottom magnet is attached and fixed on the bracket | Historical protection buildings, cultural relics, walls, bridges, surrounding rocks, towers, high-support formwork, and dangerous buildings |
| Impact monitoring | Real-time monitoring, exceeding the threshold, upload accuracy of 1mg | The stent is fixed on the surface of the monitored building (structure), and the bottom magnet is attached and fixed on the bracket | Historical protection buildings, cultural relics, walls, bridges, and dangerous buildings |
| Crack monitoring | Real-time monitoring exceeds the threshold and the upload accuracy is 0.01mm | The split brackets are connected at both ends of the crack, and the terminal device can rotate around the axis | Historical protection buildings, cultural relics, walls, bridges, surrounding rocks, and dangerous buildings |
| Staggered monitoring | Real-time monitoring exceeds the threshold and the upload accuracy is 0.01mm | The split brackets are connected at both ends of the crack, and the terminal device can rotate around the axis | Historical protection buildings, cultural relics, walls, bridges, surrounding rocks, and dangerous buildings |
