Our Services

How to use our products

According to the needs of the monitoring content, we can select the right product with reference to our solution;
Friendly reminder: Each monitoring point is independent, and different types of wireless gateways realize the transmission of data to the platform.
All monitoring points are wireless distributed collection, and for the monitoring of the underground part, then install smart poles, connect to the nearest wireless data gateway on the ground, and the data can be wirelessly transmitted to the cloud platform; For the above-ground part, according to the type of collected signal, a wireless vibrating wire data gateway is used for the vibrating wire sensor; Strain and bridge sensors with our wireless strain gateways; Wireless support for all kinds, commonly used including WIFI, 4G, 5G and NBIOT, Lora... Don't worry about the platform, all monitoring point equipment has an independent device number, and the data is on the platform, and the platform can complete the combination and analysis of the monitoring content

The smart pole is equipped with a series of modular sensors

The smart pole is equipped with a series of modular sensors

Including horizontal displacement of deep soil, layered displacement of soil, vibration string reading, strain reading, vibration measurement, combined with vibration string and strain sensors, such as traditional sensors such as seepage pressure, soil pressure, water level, etc., to complete monitoring of various deformation parameters underground;

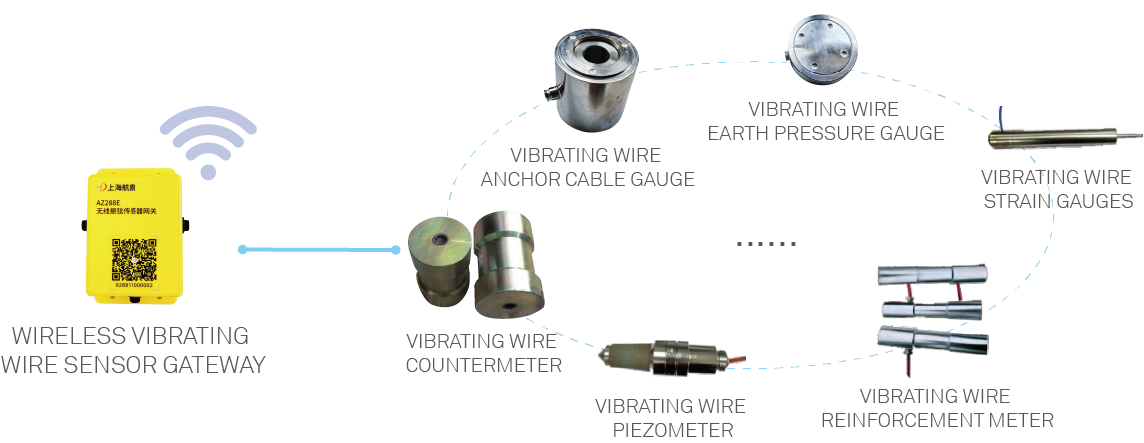

Wireless vibrating wire sensor gateway

Wireless vibrating wire sensor gateway

Supporting various types of vibration wire sensors such as traditional axial force, strain, anchor, reaction force, seepage pressure, etc., to fully integrate vibration wire sensors into the data platform;

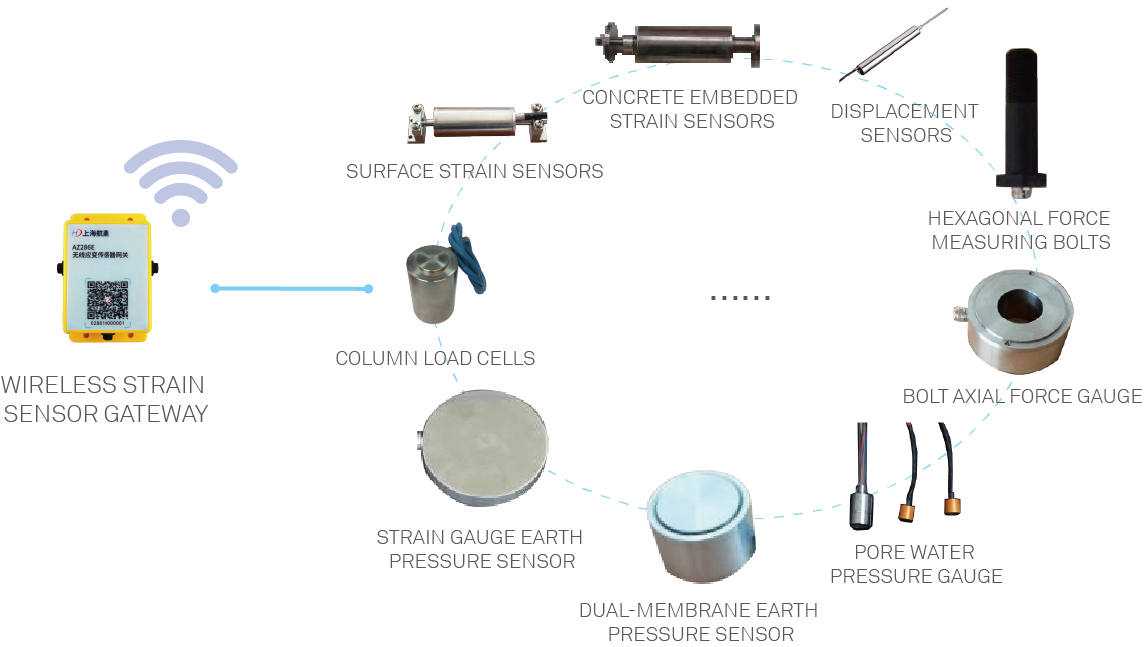

Wireless strain sensor gateway

Wireless strain sensor gateway

Realize the integration of strain gauges, strain gauges, and various full bridge, half bridge, and quarter bridge sensing signals into the data platform; The wireless data gateway supports smart pole series modules and various current and voltage transmitter signal access platforms;

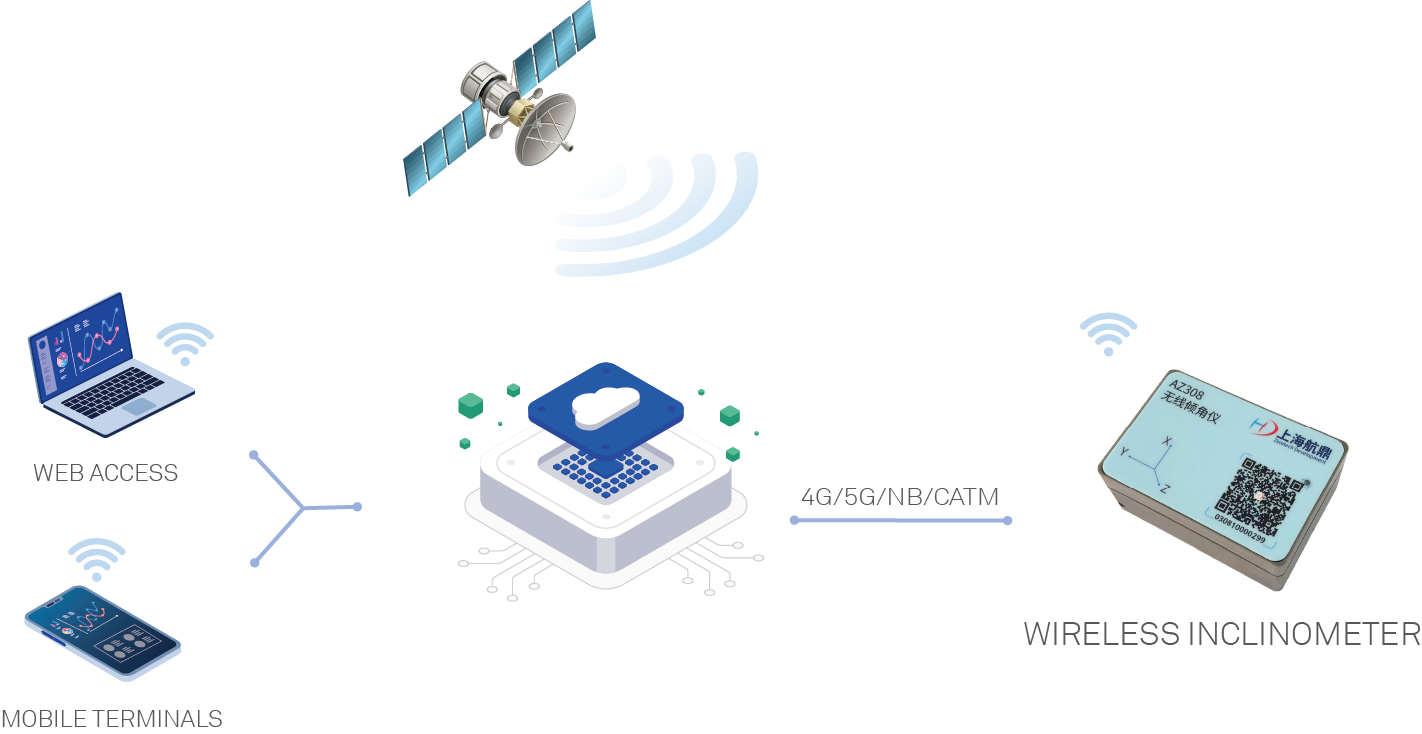

Wireless Inclinometer

Wireless Inclinometer

It can measure the inclination angle and complete monitoring data such as cracks, tension, and misalignment under different support combinations, which are directly connected to the platform;

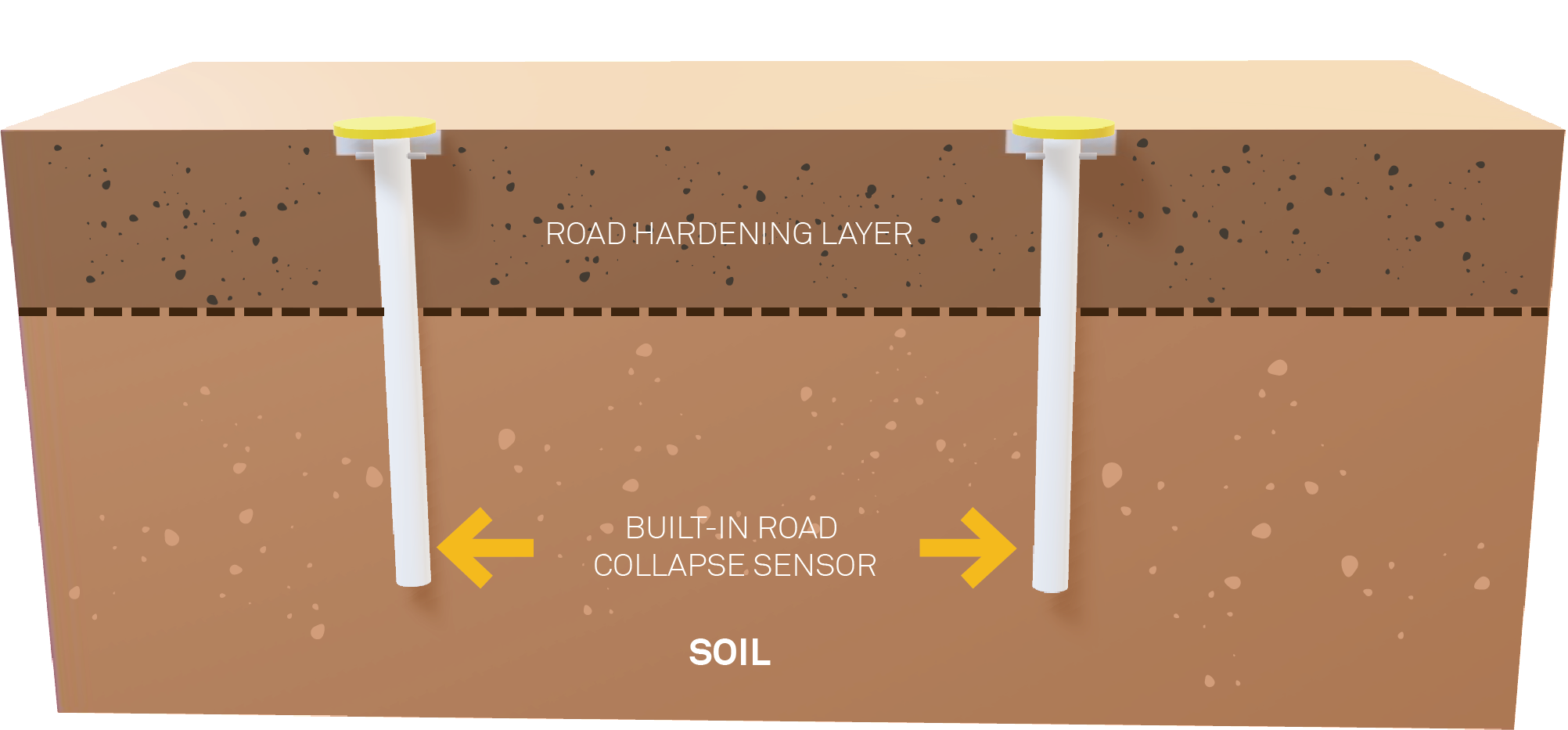

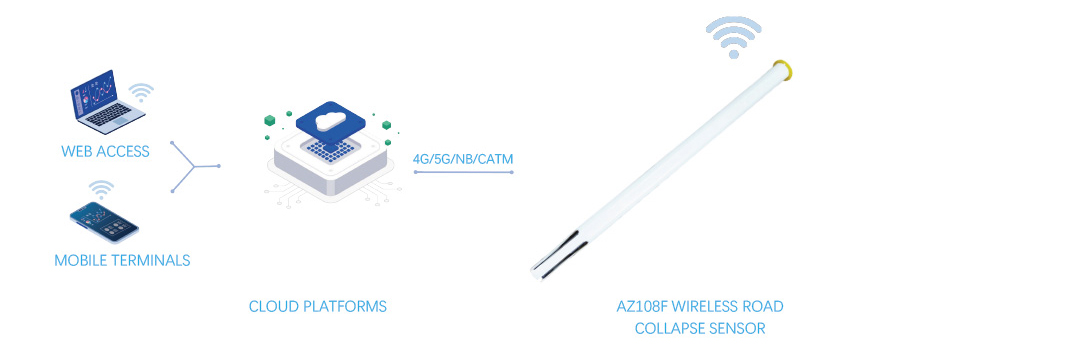

WIRELESS ROAD COLLAPSE MONITORING SENSOR

WIRELESS ROAD COLLAPSE MONITORING SENSOR

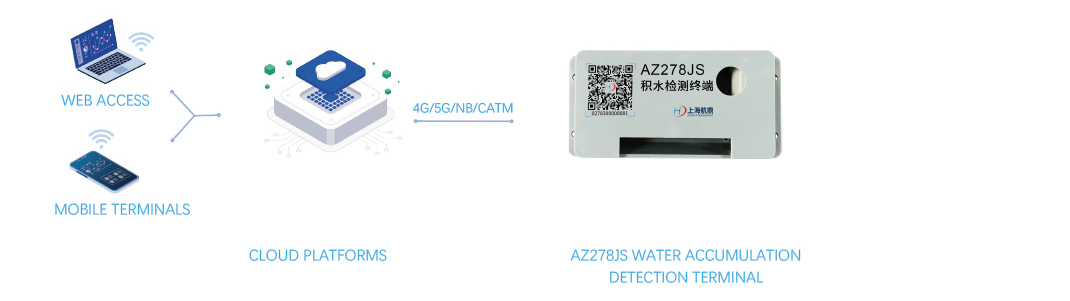

Real time monitoring of soil detachment, looseness, voids, and lateral displacement in the lower part of the road. Single point displacement monitoring and wireless alarm for various pipelines. Wireless alarm for water detection on road surface and ground area;

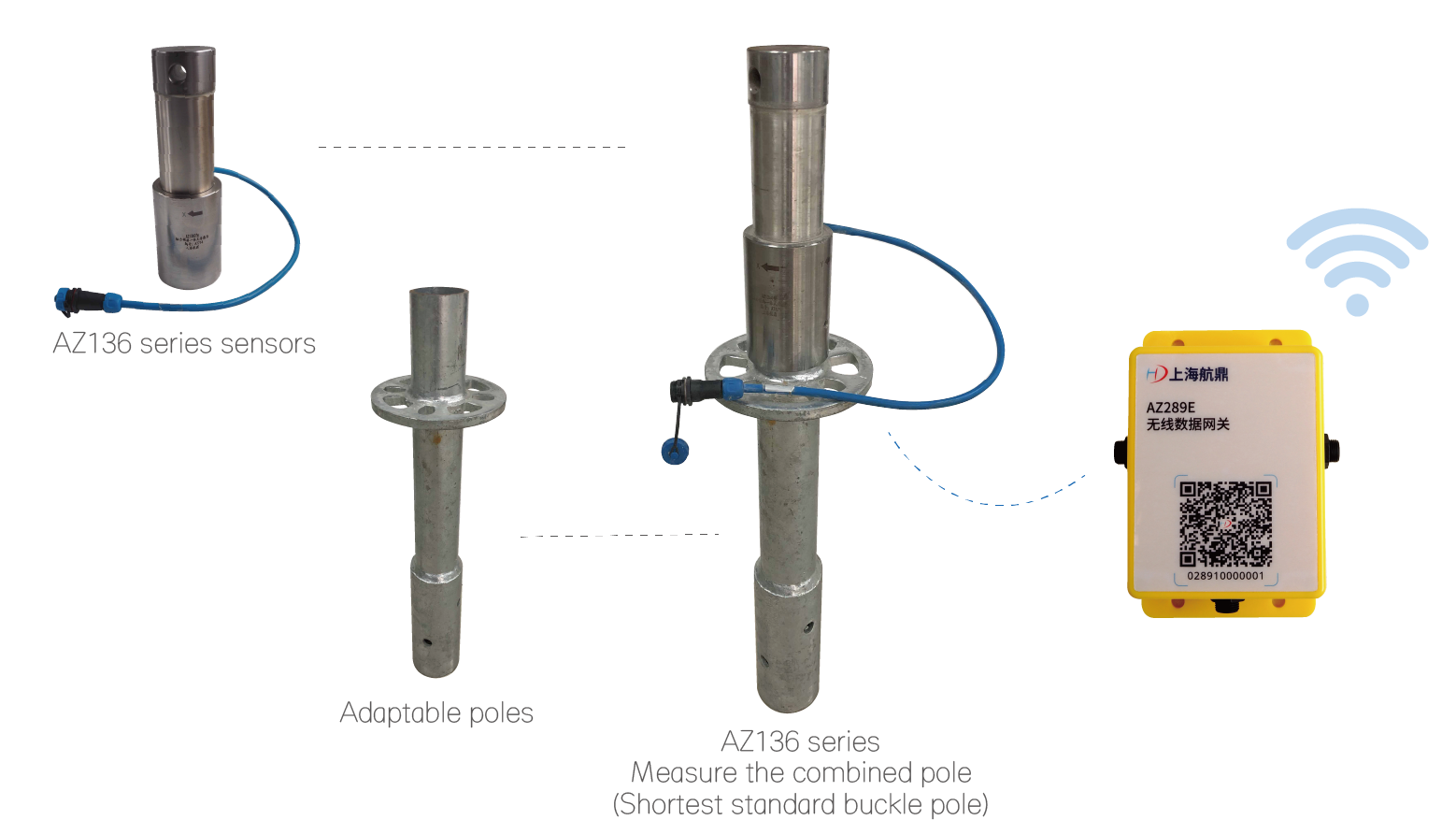

Composite sensors particularly suitable for high formwork safety monitoring

Composite sensors particularly suitable for high formwork safety monitoring

The coaxial force tilt integrated sensor adopts a buckle bracket type sub female sleeve structure;

How to choose our product

Different sensors connected to different wireless gateways can solve various types of monitoring

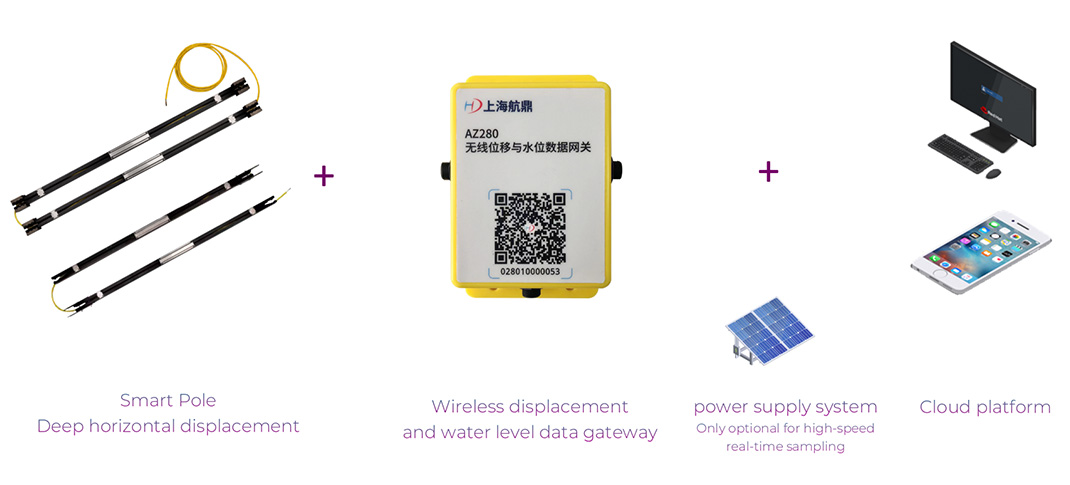

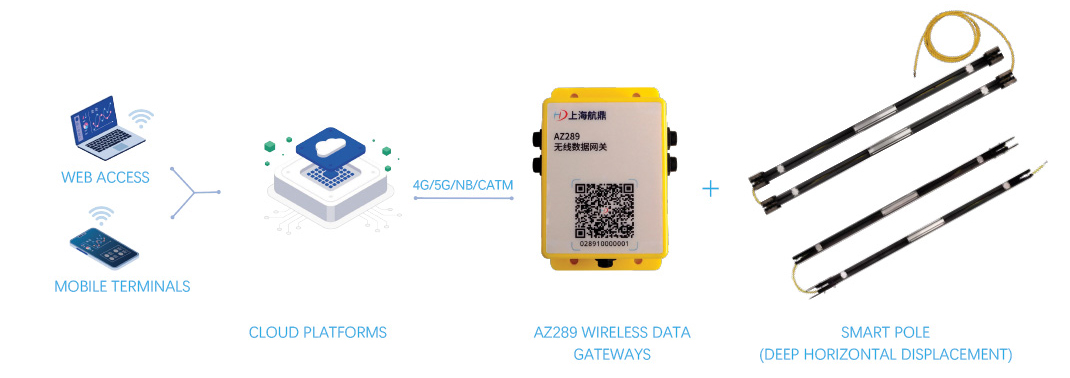

Deep horizontal displacement Digital Monitoring Program

Deep horizontal displacement Digital Monitoring Program

Implementing the use of smart poles as fixed inclinometers or flexible inclinometers;

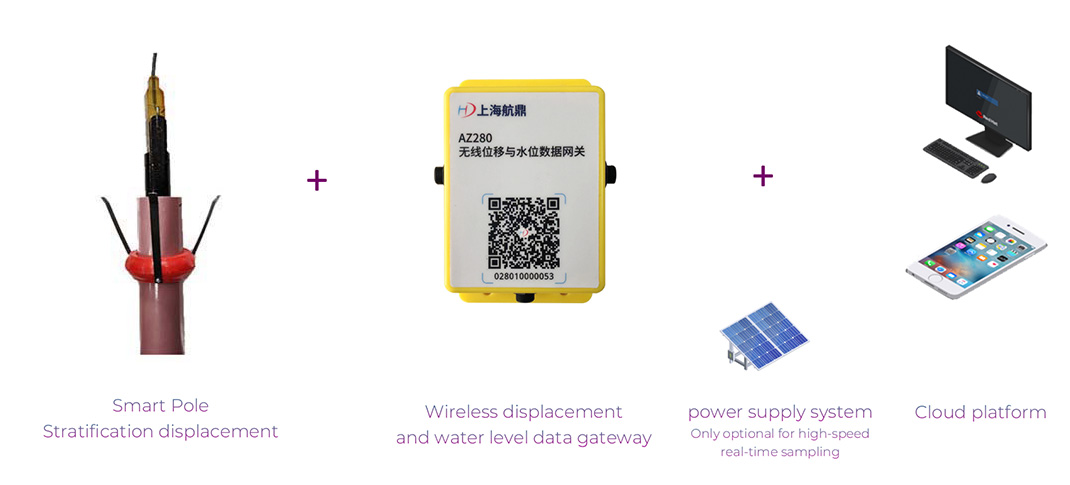

Stratification displacement Digital Monitoring Program

Stratification displacement Digital Monitoring Program

Implementation of using smart rods as layered displacement meters with magnetic rings;

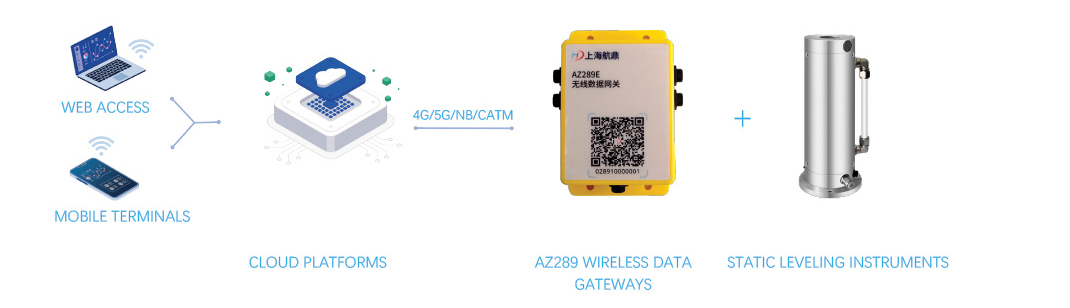

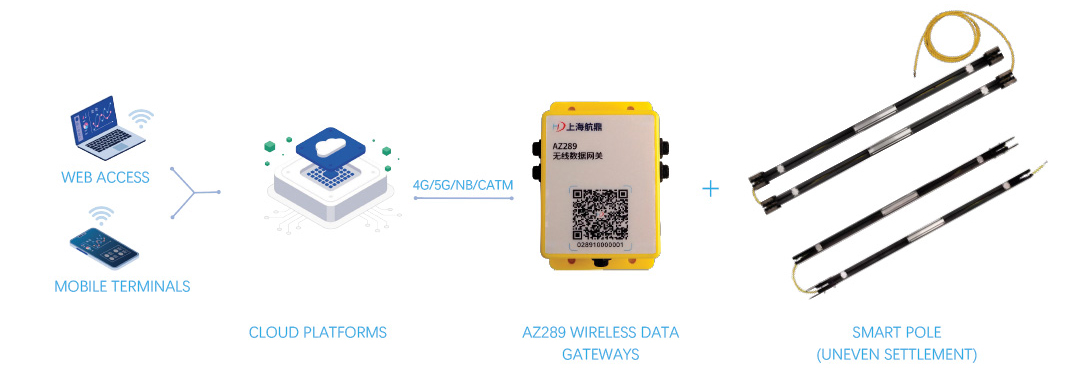

Inhomogeneous settlement Digital Monitoring Program

Inhomogeneous settlement Digital Monitoring Program

Using a smart stick as an electronic level to achieve;

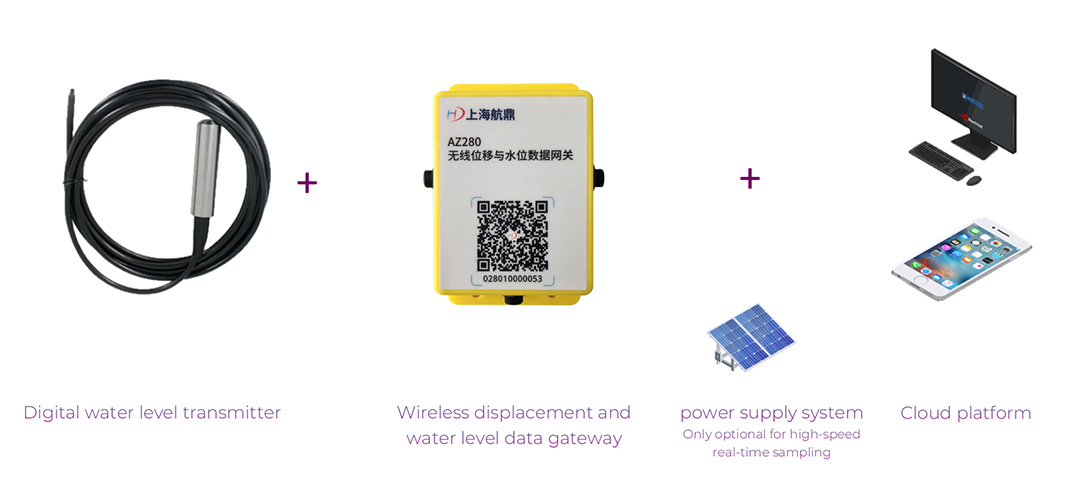

Water level Monitoring Program

Water level Monitoring Program

Implementation of Digital Input Level Gauge;

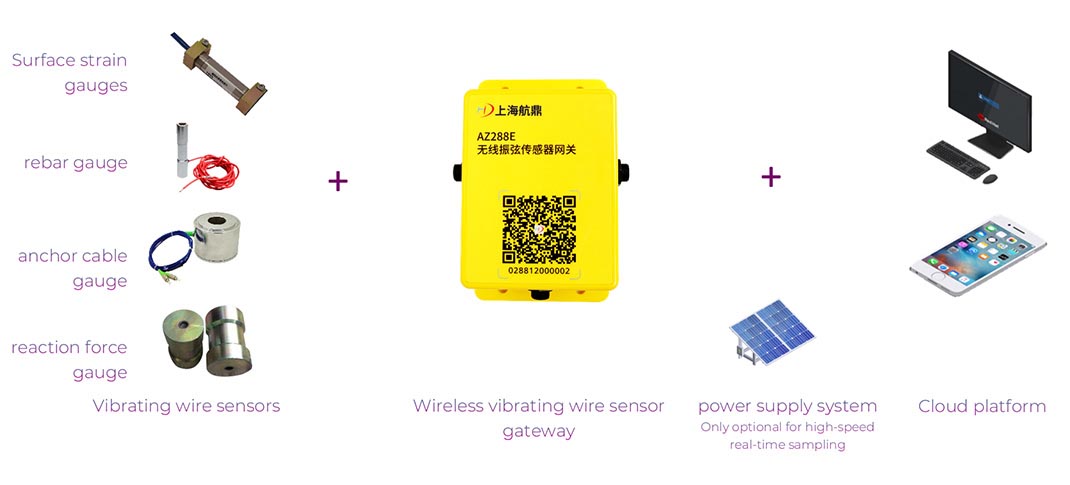

Vibrating Wire Sensor Monitoring Program

Vibrating Wire Sensor Monitoring Program

The implementation of monitoring corresponding parameters using various vibrating wire sensors combined with Wireless vibration wire sensor gateway;

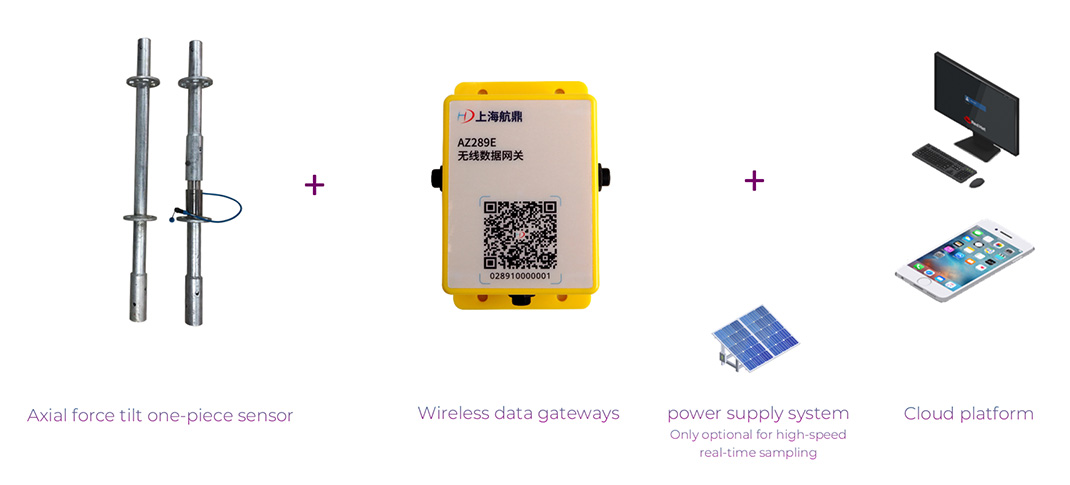

High-Formwork Axial Force, Tilt and Temperature Monitoring Program

High-Formwork Axial Force, Tilt and Temperature Monitoring Program

Adopting a composite sensor that adapts to the axial force and tilt of the socket type buckle bracket upright pole, directly replacing the upright pole at the monitoring position;

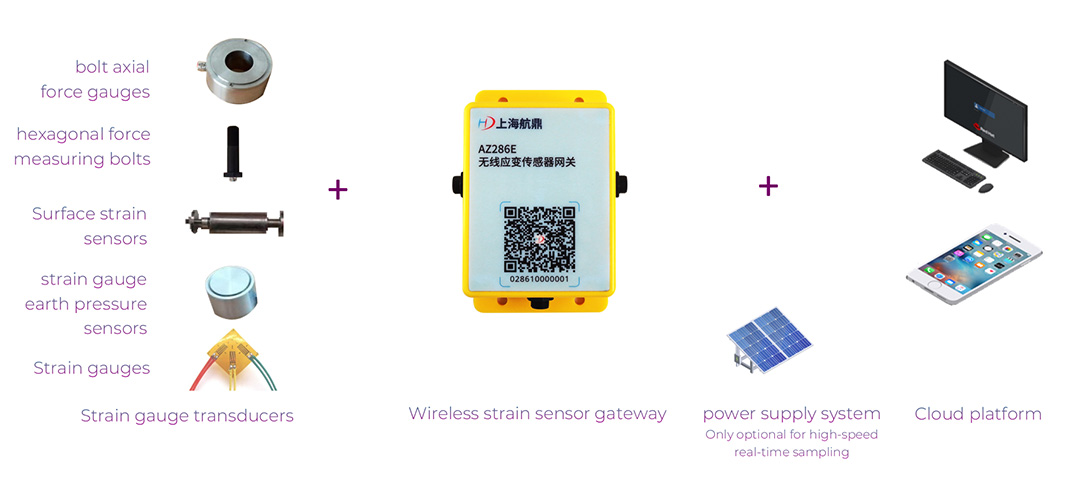

Strain gauge Monitoring Program

Strain gauge Monitoring Program

Utilizing the Wireless strain sensor gateway, combined with embedded, surface mounted, or built-in strain gauges and flower shaped sensors;
Temperature measurement Digital Monitoring Program

Temperature measurement Digital Monitoring Program

Using smart rods as temperature sensors;

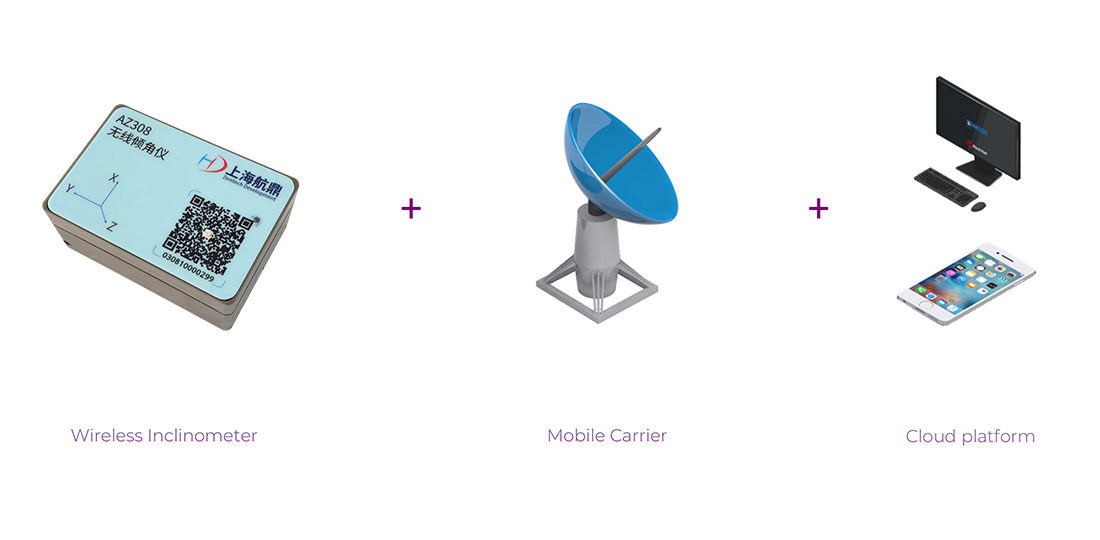

Low-frequency wireless monitoring program

Low-frequency wireless monitoring program

Wireless Inconometer can be installed with different brackets for implementation;

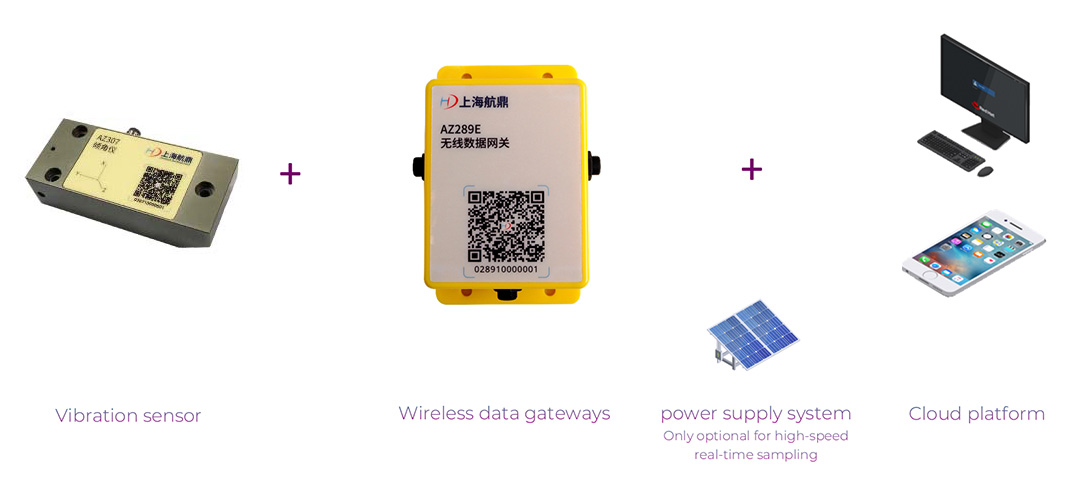

Centralized high-frequency wireless transmission solutions

Centralized high-frequency wireless transmission solutions

Vibration sensors can be installed with different brackets to achieve this;
